WECC240 Validation

This study uses the reusable WECC240 case.

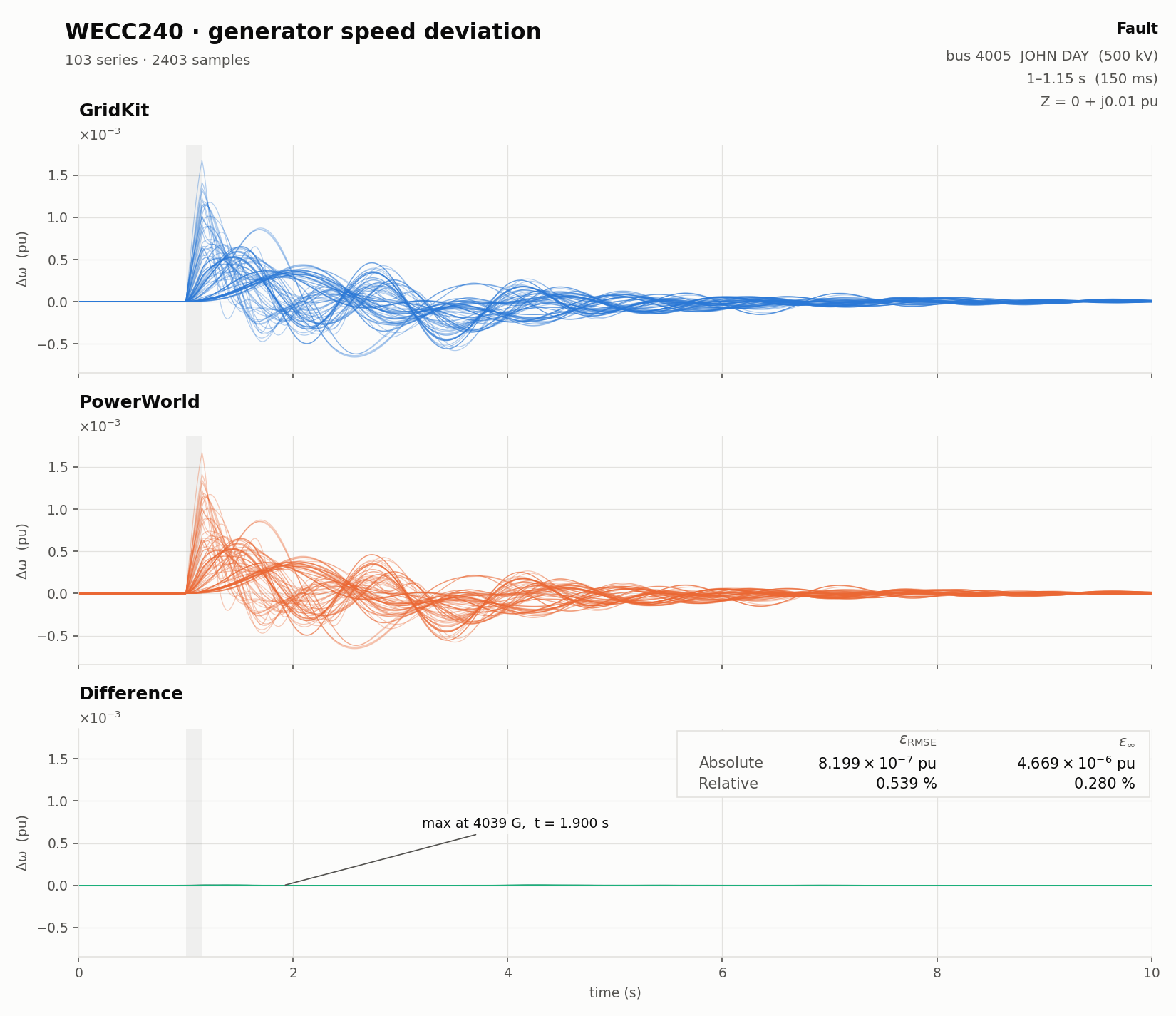

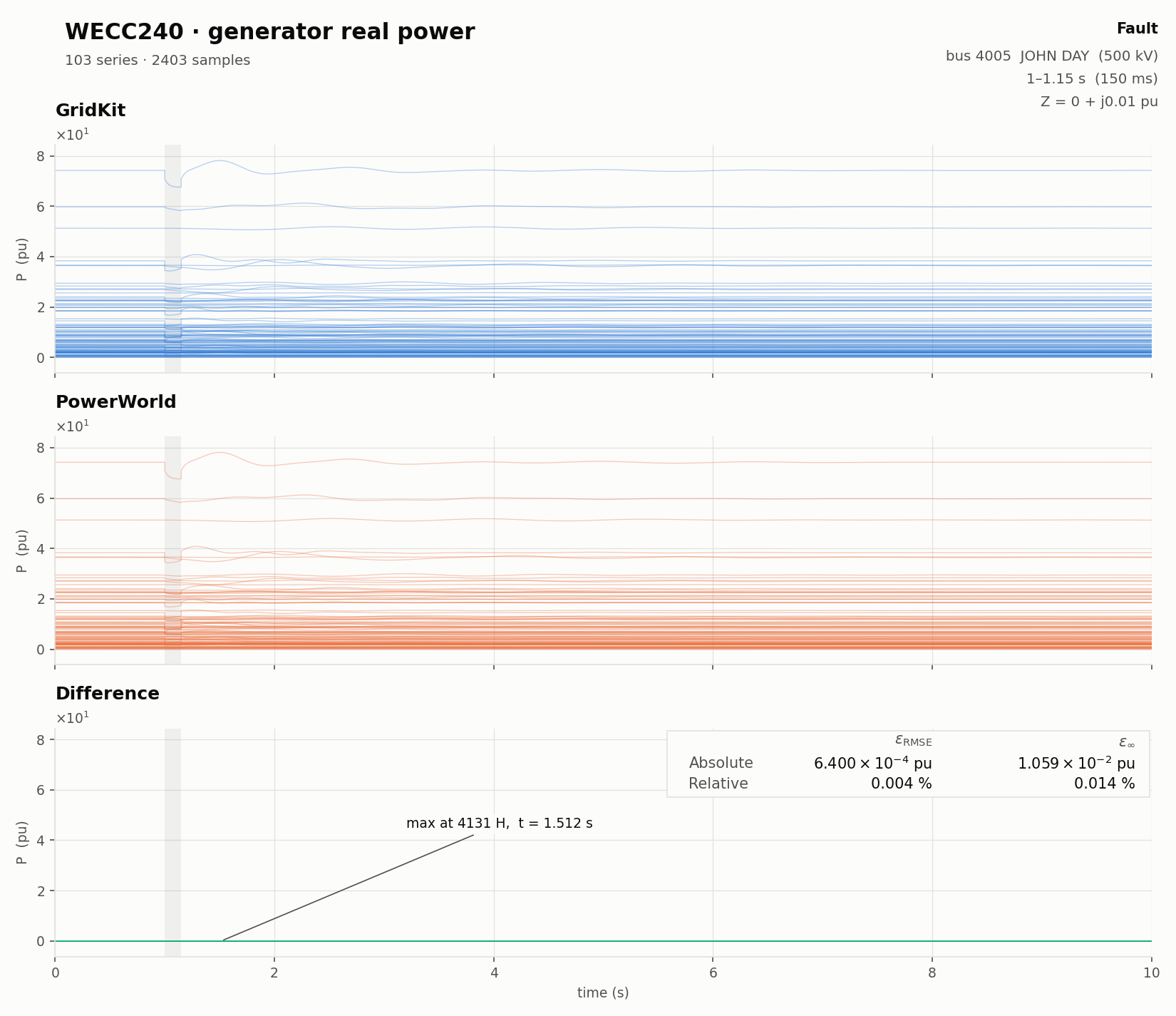

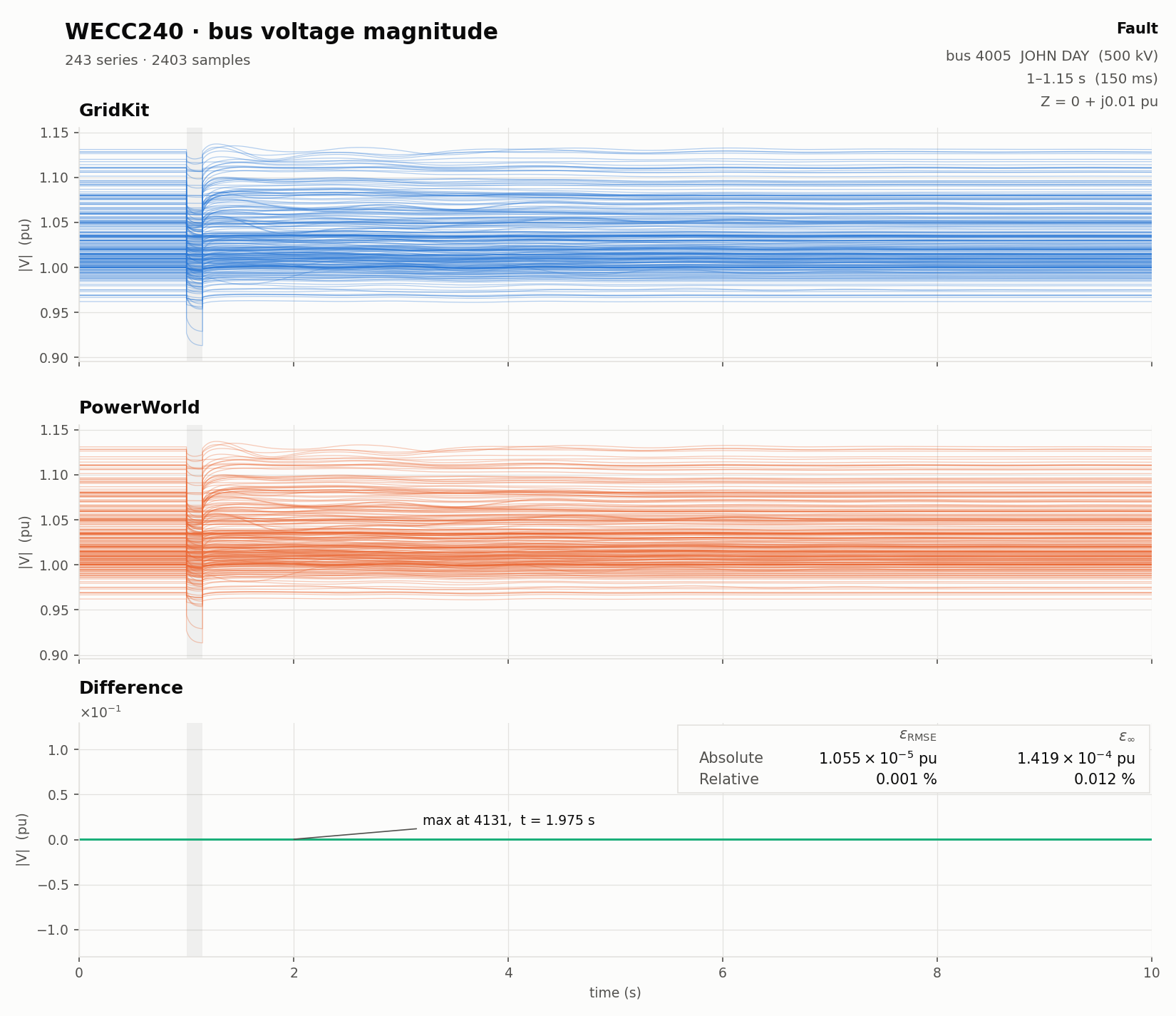

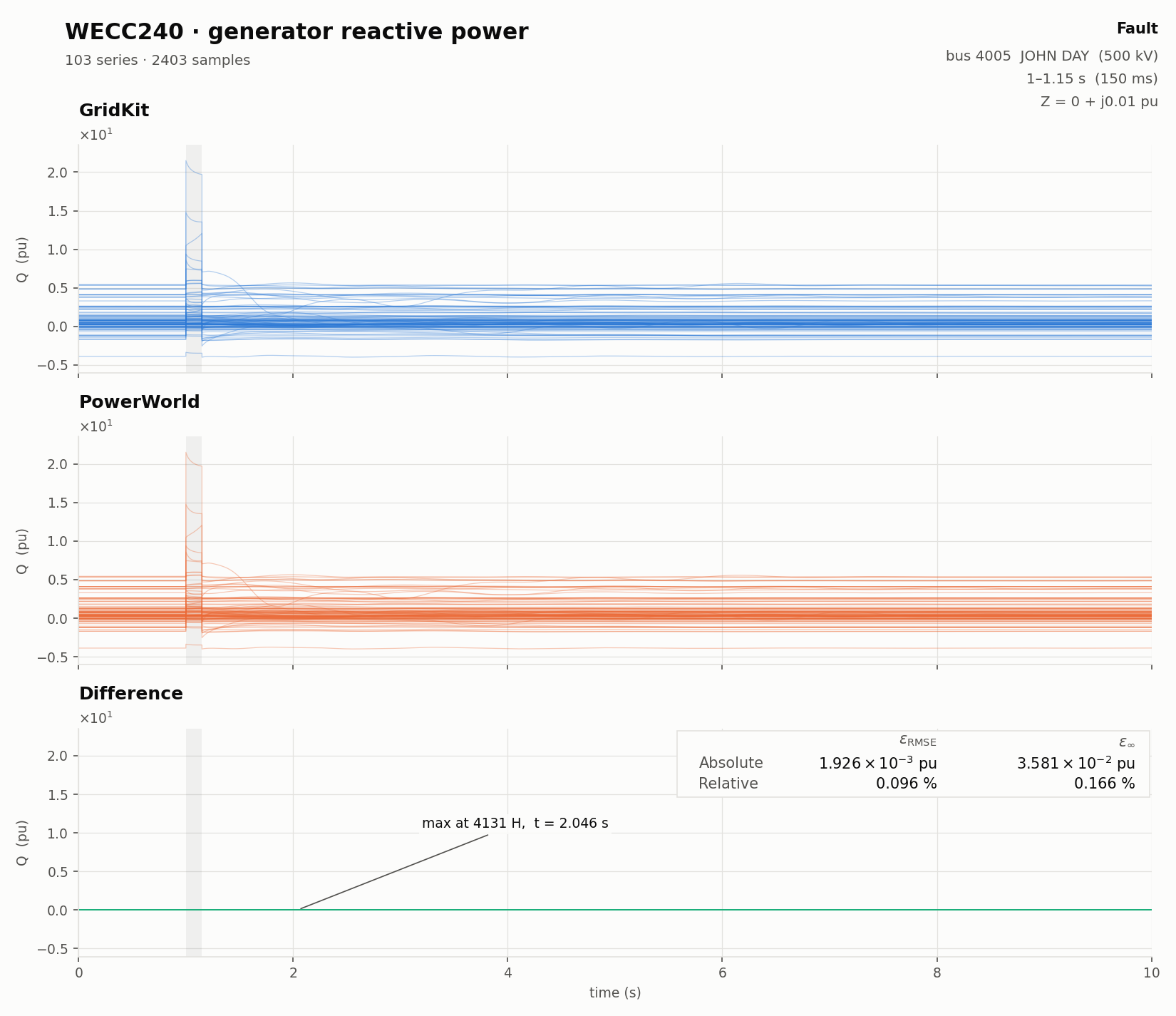

Generator speed deviation Generator real power Generator reactive power Bus voltage magnitude
