EXAC1

EXAC1 is an IEEE Type AC excitation system with a terminal-voltage transducer, lead–lag compensated voltage regulator, alternator field-voltage state, stabilizing feedback, exciter saturation, rectifier loading, and optional speed multiplier.

Notes

• Internal voltage and current signals are on model base unless otherwise stated.

• The rectifier loading block \(F_{\mathrm{ex}}=f(I_N)\) is the source AC-exciter loading curve from Fig. 1; it is not a CommonMath helper.

• The source diagram labels the optional multiplier input as Speed; GridKit uses machine speed deviation, so the enabled multiplier is \(1+\omega\).

Block Diagram

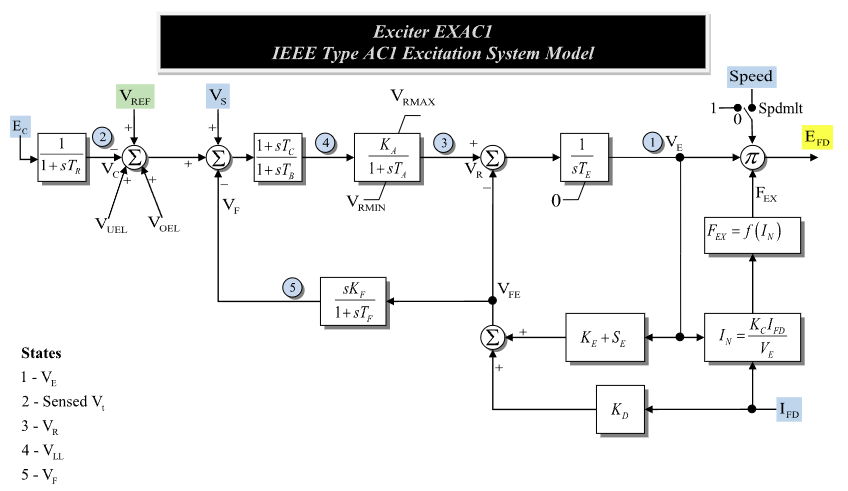

Figure 1: Exciter EXAC1 model. Figure courtesy of PowerWorld

Model Parameters

Symbol	Units	JSON	Description	Typical Value	Note
\(T_R\)	[s]	Tr	Transducer time constant	0.0	if zero, \(V_C\) is algebraic
\(T_B\)	[s]	Tb	Lag time constant for voltage-regulator input lead–lag	0.0	if \(T_B=T_C=0\), the lead–lag block is bypassed
\(T_C\)	[s]	Tc	Lead time constant for voltage-regulator input lead–lag	0.0
\(K_A\)	[p.u.]	Ka	Voltage-regulator gain	40.0
\(T_A\)	[s]	Ta	Voltage-regulator time constant	0.1
\(V_R^{\max}\)	[p.u.]	Vrmax	Maximum voltage-regulator output	1.0
\(V_R^{\min}\)	[p.u.]	Vrmin	Minimum voltage-regulator output	-1.0
\(T_E\)	[s]	Te	Exciter alternator time constant	0.5
\(K_F\)	[p.u.]	Kf	Stabilizing feedback gain	0.05
\(T_F\)	[s]	Tf	Stabilizing feedback time constant	0.7	if zero, \(V_F\) is algebraic
\(K_C\)	[p.u.]	Kc	Rectifier loading current coefficient	0.0	forms \(I_N\)
\(K_D\)	[p.u.]	Kd	Demagnetizing factor feedback gain	0.0
\(K_E\)	[p.u.]	Ke	Exciter field-resistance line-slope margin	0.1
\(E_1\)	[p.u.]	E1	First saturation voltage point	2.8
\(S_E(E_1)\)	[p.u.]	SE1	Saturation value at \(E_1\)	0.08	Source label: Se1
\(E_2\)	[p.u.]	E2	Second saturation voltage point	3.7
\(S_E(E_2)\)	[p.u.]	SE2	Saturation value at \(E_2\)	0.33	Source label: Se2
\(s_{\mathrm{spd}}\)	[binary]	Spdmlt	Speed multiplier flag	0	1 enables the speed multiplier

Parameter Validation

A valid EXAC1 parameter set must satisfy the following conditions:

\[\begin{split}\begin{aligned} &K_A > 0 \\ &T_R \ge 0,\quad T_A > 0,\quad T_B \ge 0,\quad T_C \ge 0,\quad T_E > 0,\quad T_F \ge 0 \\ &T_B > 0\quad\text{or}\quad(T_B = 0\ \text{and}\ T_C = 0) \\ &V_R^{\min} \le V_R^{\max} \\ &s_{\mathrm{spd}} \in \{0,1\} \end{aligned}\end{split}\]

The saturation points are either disabled together,

\[\begin{aligned} S_E(E_1) = 0,\quad S_E(E_2) = 0 \end{aligned}\]

or define a valid two-point quadratic saturation fit:

\[\begin{split}\begin{aligned} &E_1 > 0,\quad E_2 > 0,\quad E_1 \ne E_2 \\ &S_E(E_1) > 0,\quad S_E(E_2) > 0,\quad S_E(E_1) \ne S_E(E_2) \end{aligned}\end{split}\]

Model Derived Parameters

The saturation curve is fitted from the two supplied saturation points. If both saturation factors are zero, use \(S_A=0\) and \(S_B=0\). Otherwise:

\[\begin{split}\begin{aligned} C &= \sqrt{\dfrac{S_E(E_2)}{S_E(E_1)}} \\ S_A &= \dfrac{C E_1 - E_2}{C - 1} \\ S_B &= \dfrac{S_E(E_1)}{(E_1 - S_A)^2} \end{aligned}\end{split}\]

Model Ports

Name	Port	Init	Description
ec	Input	TBD	Compensated terminal voltage magnitude \(E_C\)
vref	Input	TBD	Voltage-control reference \(V_{\mathrm{ref}}\)
vs	Input	TBD	Stabilizer input signal \(V_S\)
vuel	Input	TBD	Under-excitation limiter input \(V_{\mathrm{uel}}\)
voel	Input	TBD	Over-excitation limiter input \(V_{\mathrm{oel}}\)
ifd	Input	TBD	Machine field current \(I_{\mathrm{fd}}\)
speed	Input	TBD	Machine speed deviation \(\omega\)
efd	Output	TBD	Field-voltage output \(E_{\mathrm{fd}}\)

Model Variables

Internal Variables

Differential

Symbol	Units	Description	Note
\(V_E\)	[p.u.]	Exciter alternator voltage state before output multipliers	State 1 in Fig. 1; Source label: VE
\(V_C\)	[p.u.]	Sensed compensated voltage	State 2 in Fig. 1; Source label: Sensed Vt; algebraic when \(T_R=0\)
\(V_R\)	[p.u.]	Voltage-regulator output	State 3 in Fig. 1; Source label: VR
\(x_{\mathrm{LL}}\)	[p.u.]	Lead–lag block state	State 4 in Fig. 1; Source label: VLL
\(V_F\)	[p.u.]	Stabilizing feedback washout output	State 5 in Fig. 1; Source label: VF; algebraic when \(T_F=0\)

Algebraic

Symbol	Units	Description	Note
\(e_V\)	[p.u.]	Voltage-regulator input error before lead–lag block	Summing junction after sensed voltage
\(V_{\mathrm{LL}}\)	[p.u.]	Lead–lag output	Input to voltage regulator
\(S_E\)	[p.u.]	Saturation coefficient evaluated at \(V_E\)	Uses derived saturation curve
\(I_N\)	[p.u.]	Normalized exciter loading current	Source label: IN; satisfies \(V_E I_N=K_C I_{\mathrm{fd}}\)
\(F_{\mathrm{ex}}\)	[p.u.]	Rectifier loading factor	Source label: FEX; source curve \(F_{\mathrm{ex}}=f(I_N)\)
\(V_{\mathrm{FE}}\)	[p.u.]	Exciter feedback signal	Sum of saturation/resistance and \(K_D I_{\mathrm{fd}}\) paths
\(E_{\mathrm{fd}}\)	[p.u.]	Field-voltage output	Output after rectifier loading and optional speed multiplier

External Variables

Differential

None.

Algebraic

Symbol	Units	Description	Note
\(E_C\)	[p.u.]	Compensated terminal voltage magnitude	Source label: EC
\(V_{\mathrm{ref}}\)	[p.u.]	Voltage-control reference	Source label: VREF
\(V_S\)	[p.u.]	Stabilizer input signal	Source label: VS; optional, defaults to zero
\(V_{\mathrm{uel}}\)	[p.u.]	Under-excitation limiter input	Source label: VUEL; optional, defaults to zero
\(V_{\mathrm{oel}}\)	[p.u.]	Over-excitation limiter input	Source label: VOEL; optional, defaults to zero
\(I_{\mathrm{fd}}\)	[p.u.]	Machine field current	Source label: IFD
\(\omega\)	[p.u.]	Machine speed deviation	Source label: Speed; optional when \(s_{\mathrm{spd}}=0\)

Model Equations

Smooth functions: antiwindup, \(q\).

Internal Equations

Differential

\[\begin{split}\begin{aligned} 0 &= -T_R\dot V_C - V_C + E_C \\ 0 &= -T_B\dot x_{\mathrm{LL}} - x_{\mathrm{LL}} + e_V \\ 0 &= -T_A\dot V_R + \text{antiwindup}\!( V_R, -V_R + K_A V_{\mathrm{LL}}; V_R^{\min}, V_R^{\max} ) \\ 0 &= -T_E\dot V_E + V_R - V_{\mathrm{FE}} \\ 0 &= -T_F\dot V_F - V_F + K_F\dot V_E \end{aligned}\end{split}\]

Algebraic

\[\begin{split}\begin{aligned} 0 &= -e_V + V_{\mathrm{ref}} + V_S + V_{\mathrm{uel}} + V_{\mathrm{oel}} - V_C - V_F \\ 0 &= -T_B(V_{\mathrm{LL}} - x_{\mathrm{LL}}) + T_C(e_V - x_{\mathrm{LL}}) \\ 0 &= -S_E + S_B\,q(V_E - S_A) \\ 0 &= -V_E I_N + K_C I_{\mathrm{fd}} \\ 0 &= -F_{\mathrm{ex}} + f(I_N) \\ 0 &= -V_{\mathrm{FE}} + (K_E + S_E)V_E + K_D I_{\mathrm{fd}} \\ 0 &= -E_{\mathrm{fd}} + (1+s_{\mathrm{spd}}\omega)F_{\mathrm{ex}}V_E \end{aligned}\end{split}\]

When \(T_B=T_C=0\), the lead–lag block is bypassed so \(V_{\mathrm{LL}}=e_V\).

External Equations

None.

Initialization

The machine initializes \(E_{\mathrm{fd}}\) and \(I_{\mathrm{fd}}\) first. For a standard unsaturated start, EXAC1 reads those values along with attached \(\omega\), \(E_C\), \(V_S\), \(V_{\mathrm{uel}}\), and \(V_{\mathrm{oel}}\), and sets all internal derivatives to zero. First solve the coupled rectifier-loading equations:

\[\begin{split}\begin{aligned} 0 &= -V_E I_N + K_C I_{\mathrm{fd}} \\ 0 &= -F_{\mathrm{ex}} + f(I_N) \\ 0 &= -E_{\mathrm{fd}} + (1+s_{\mathrm{spd}}\omega)F_{\mathrm{ex}}V_E \end{aligned}\end{split}\]

Then evaluate:

\[\begin{split}\begin{aligned} S_E &\leftarrow S_B\,q(V_E - S_A) \\ V_{\mathrm{FE}} &\leftarrow (K_E + S_E)V_E + K_D I_{\mathrm{fd}} \\ V_R &\leftarrow V_{\mathrm{FE}} \\ V_{\mathrm{LL}} &\leftarrow \dfrac{V_R}{K_A} \\ V_C &\leftarrow E_C \\ V_F &\leftarrow 0 \\ e_V &\leftarrow V_{\mathrm{LL}} \\ x_{\mathrm{LL}} &\leftarrow e_V \\ V_{\mathrm{ref}} &\leftarrow e_V + V_C + V_F - V_S - V_{\mathrm{uel}} - V_{\mathrm{oel}} \end{aligned}\end{split}\]

This standard start requires \(1+s_{\mathrm{spd}}\omega\ne 0\), \(V_E\ne 0\), and \(V_R^{\min}\le V_R\le V_R^{\max}\). Saturated regulator starts are outside these closed-form equations.

Monitors

Monitor	Units	Description	Note
efd	[p.u.]	Field-voltage output	\(E_{\mathrm{fd}}\)
ve	[p.u.]	Exciter alternator voltage state	\(V_E\)
vc	[p.u.]	Sensed compensated voltage	\(V_C\)
vr	[p.u.]	Voltage-regulator output	\(V_R\)
vll	[p.u.]	Lead–lag output	\(V_{\mathrm{LL}}\)
vf	[p.u.]	Stabilizing feedback state	\(V_F\)
in	[p.u.]	Normalized exciter loading current	\(I_N\)
fex	[p.u.]	Rectifier loading factor	\(F_{\mathrm{ex}}\)
se	[p.u.]	Saturation coefficient	\(S_E\)
